MapNav MiniPC

MapNav MiniPC is the module used by the mobile users in the vehicle. This includes:

• Bus Drivers
• Taxi Drivers
• Delivery Agents

A summary of features include:

• Map Navigation
• Vector & Raster GIS Dataset Support
• Security (SSL Connections)
• Instant Messaging Integration
• GPS Integration
• Touchscreen operation
• Voice activated
• iButton auto logon

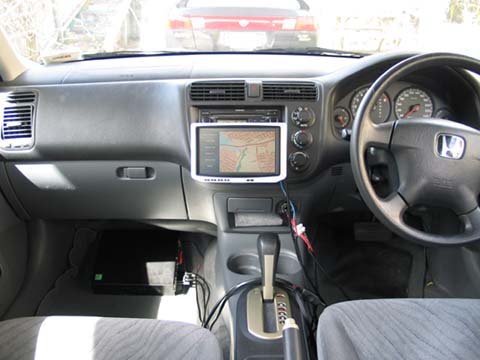

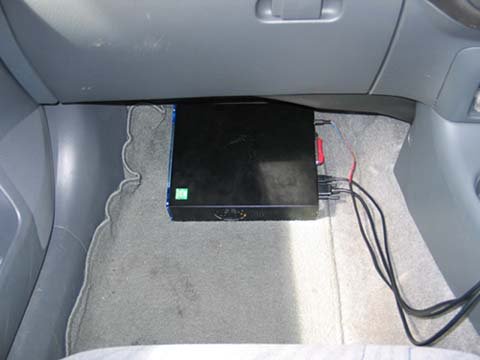

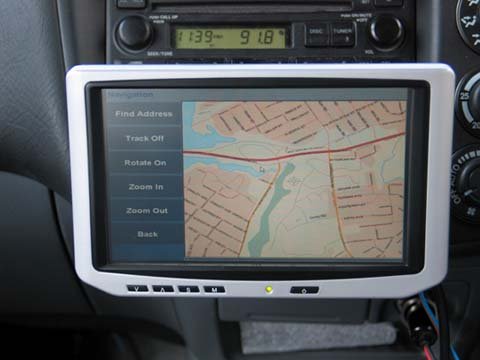

Screenshots of the hardware module is shown below.

The recommended hardware includes:

• VIA Epia MII 12000 Nehemiah Mainboard
• Gain 7" VGA/Composite Monitor with Touchscreen
• 512MB PC2700 333MHz DDR DIMM - Ultra Low Profile
• Seagate 40GB Momentus 5400 rpm 2.5" Drive - ST94011A
• Slim 24X Slot Loading DVD-ROM & CD-RW - Panasonic CW-8123-B
• Cubid 3688 - Black
• Morex 60W InCar PSU Set
• ITPS Power Sequencer/LDO Module

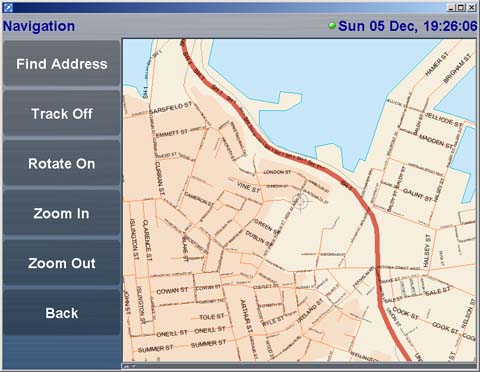

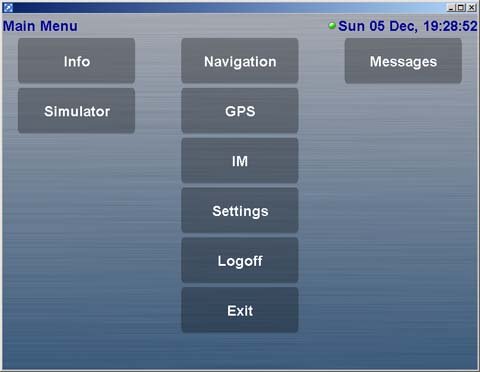

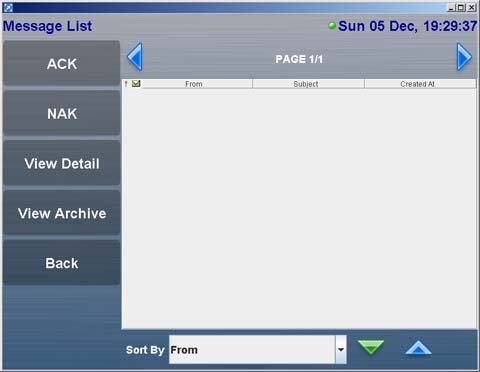

Screenshots of the software module is shown below.
